Heavy-duty connector

返回列表 Release date 2018-12-06 Visits:

Heavy-duty connector

Heavy-duty connectors are screw-connected and cold-pressed. The heavy-duty connectors for cold-pressed connections require additional cold-pressed pins. Many new customers use cold-pressed heavy-duty connectors for the first time. How to remove the wrong hole? What tools should I use?


The first step is to clear whether the cold press needle is 10A or 16A.




                    10A                                           16A

Step 2 Select the corresponding needle remover

On the left is the 10A needle remover and on the right is the 16A needle remover

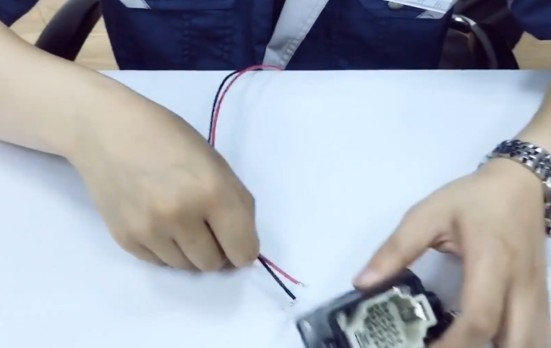

Step 3 Use the needle remover to withdraw the needle


10A needle withdrawal method






16A needle withdrawal method
